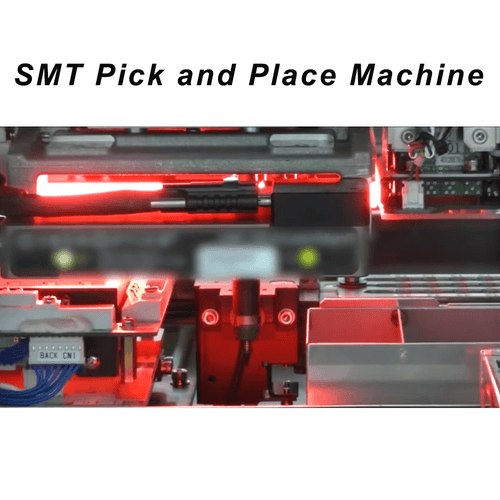

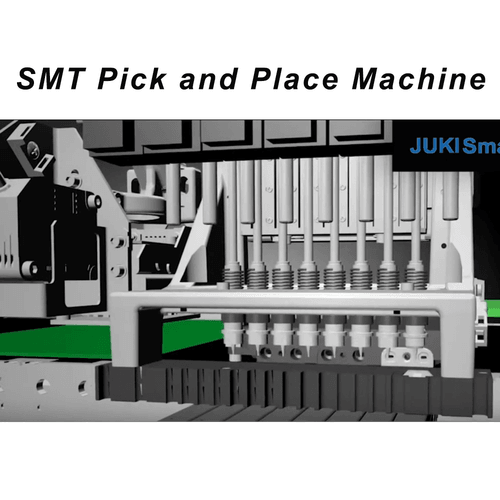

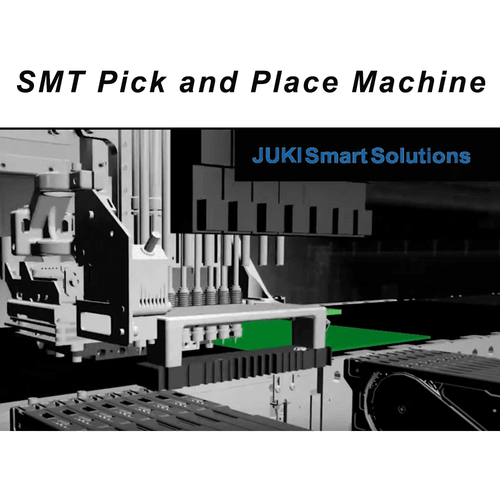

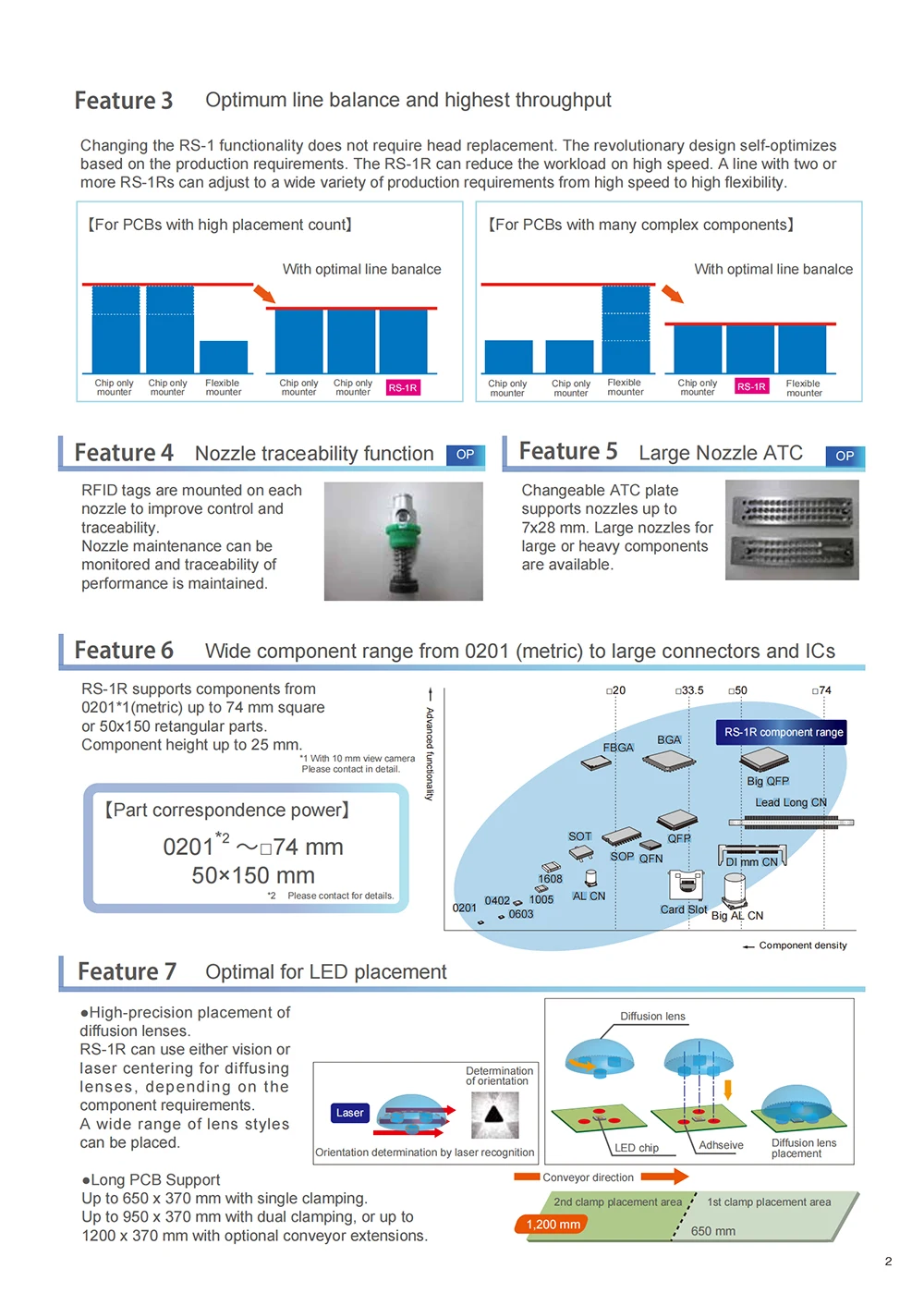

Model: Fast Smart Modular Mounter RS-1R

Conveyor specification
(Standard, 150 mm extension): Upstream and downstream
(Extended, 250 mm extension): Upstream and downstream

Board size
(Standard, Single clamping): 50×50 mm ; (Standard, Double clamping, 1 buffer): 950×370 mm
(Standard, Double clamping, 3 buffers): 1,100×370 mm ; (Extended, Double clamping): 1,200×370 mm
(Other configuration, Single clamping): 360×370 mm ; (Other configuration, Double clamping): 500×370 mm / 600×370 mm

Component height
(Standard): 25 mm

Component size
(Standard, Minimum): 0201 ; (Standard, Maximum): 74 mm / 150×50 mm

Placement speed
(Standard, Optimum): 47,000 CPH
(Standard, IPC9850): 31,000 CPH

Placement accuracy
(Standard): ±35 μm (Cpk ≥ 1)

Feeder inputs
(Standard, Maximum): 112

Power supply
(Standard): AC200 ~ 415V, 3-phases

Apparent power
(Standard): 2.2 kVA

Operating air pressure
(Standard): 0.5 ± 0.05 MPa

Air consumption
(Standard): 200 L/min for internal vacuum generator ; (Optional pump): 50 L/min

Machine dimensions (W×D×H)
(Standard): 1,500×1,810×1,440 mm ; (Configuration 1): 1,800×1,810×1,440 mm
(Configuration 2): 2,000×1,810×1,440 mm

Mass (approximately)
(Standard): 1,700 kg
