Packaging and delivery

Selling Units: Single item

Single package size: 998X1895X1530 cm

Single gross weight: 1876.000 kg

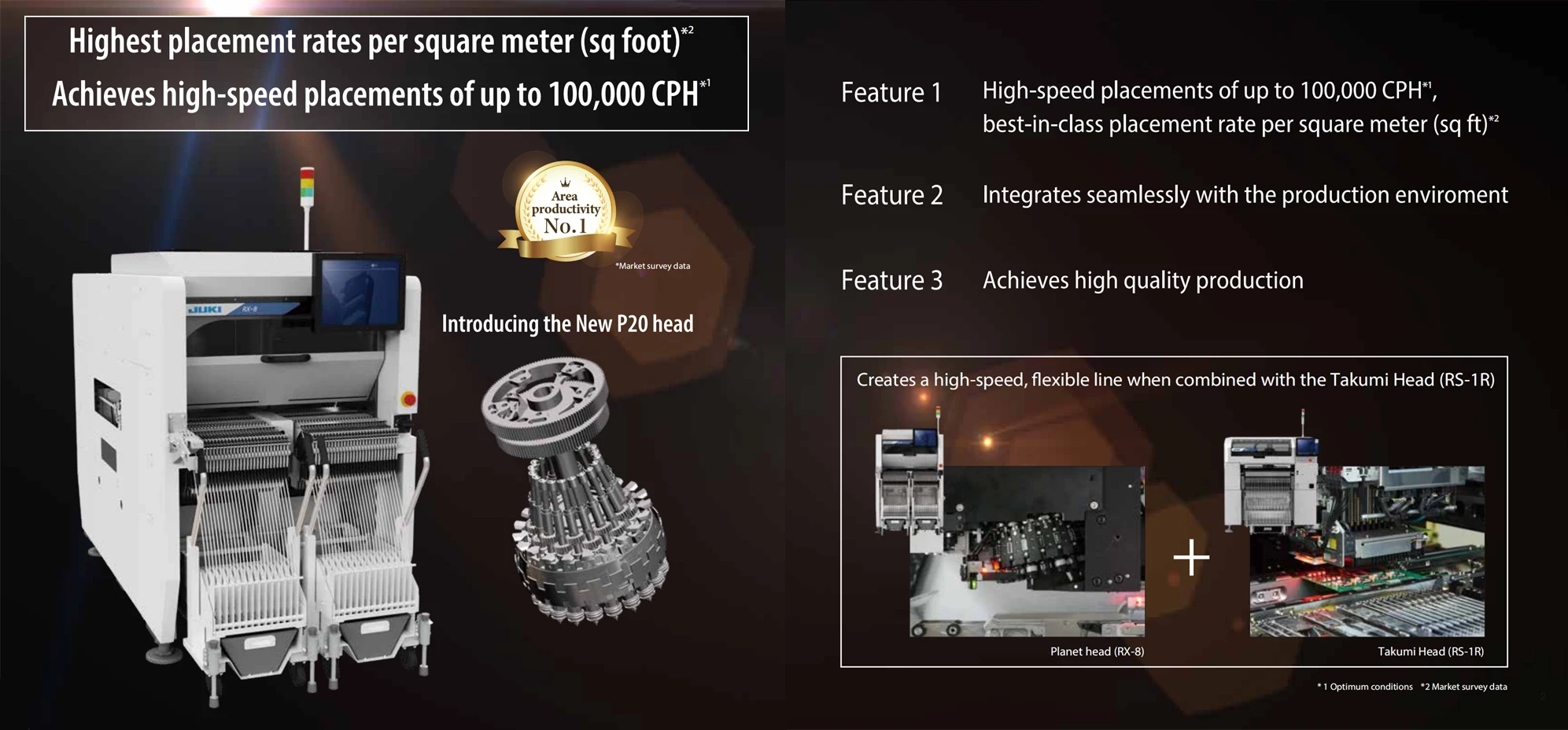

High-Speed Compact Modular Mounter RX-8 Specifications

Board size
(RX-8, Minimum): 50×50 mm ; (RX-8, Maximum): 510×450 mm *1 *2

Component height
(RX-8): 3 mm

Component size
(RX-8, Minimum): 0201 *3 ; (RX-8, Maximum): □5 mm

Placement speed
(RX-8, Optimum, Chip): 100,000 CPH

Placement accuracy
(RX-8): ±0.04 mm (Cpk ≥ 1)

Feeder capacity
(RX-8, Maximum): Up to 56 *4

Power supply
(RX-8): 3-phase AC200V, 220V - 430V *5

Apparent power
(RX-8): 2.1 kVA

Operating air pressure
(RX-8): 0.5 ± 0.05 MPa

Air consumption
(RX-8, Standard): 20 L/min ANR (during normal operation)

Machine dimensions (W×D×H) *6
(RX-8): 998 mm × 1,895 mm × 1,530 mm

Mass (approximately)
(RX-8, Fixed bank): 1,810 kg ; (RX-8, With bank changing): 1,760 kg

Notes:
*1 BOC, Bad Mark, and 2D barcode can be read only if the board length is from 50 mm to 350 mm.
*2 In long board mode, two boards can be produced simultaneously up to 420 mm long.
*3 Please contact JUKI for details.
*4 When using RF08AS.
*5 220V - 430V requires a separate transformer.
*6 Depth (D) does not include the monitor, and height (H) does not include the signal light when the conveyor height is 900 mm.
